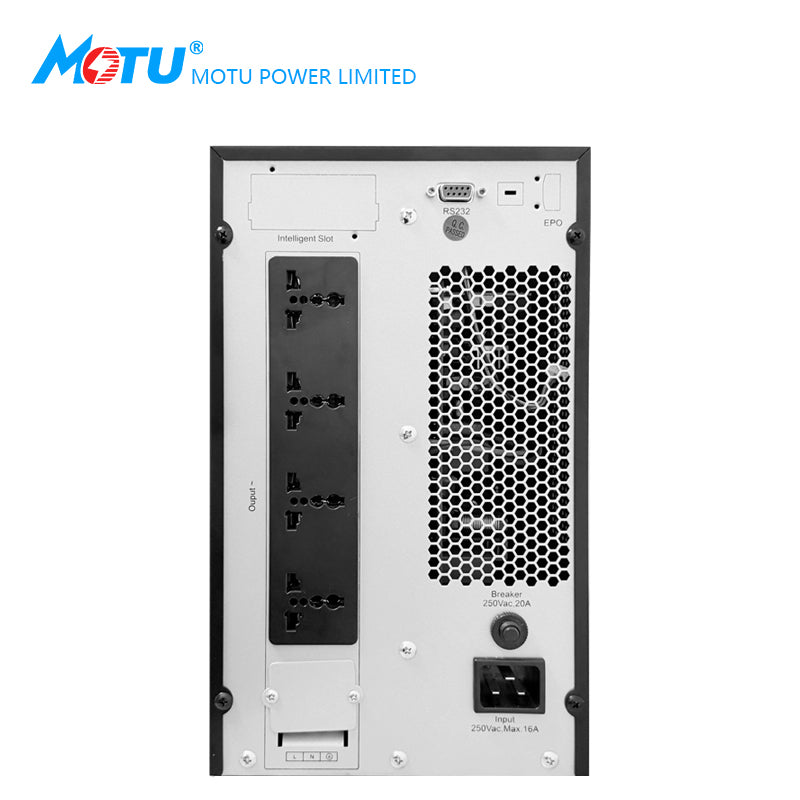

1kVA/1kW OEM Single phase 220v 380v backup uninterruptible power supply 3 fase Onduleur online ups

1kVA/1kW OEM Single phase 220v 380v backup uninterruptible power supply 3 fase Onduleur online ups

$0.00 USD
$0.00 USD
Sale $0.00 Sold out

Product Details:

Place of Origin: Shenzhen, China / Anhui
Brand Name: MOTU/HRD/OEM
Certification: CE,ISO9001
Model Number: 1kVA/1kW

Power supply:

 Available in the US, EU, UK and Australia.





Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Supply Ability: 500pcs/day
Packaging Details: 1PCS/1CTN,STANDARD FOR EXPORT

Delivery Time:

 3-4 weeks after down payment
Price: Online quotes, email, or contact me via WhatsApp.




Click to contact me!
View full details
Specification
Model 1kVA TS 1kVA TL 2kVA TS 2kVA TL 3kVA TS 3kVA TL
Phase 1 Phase 2 wire + PE
Capacity 1kVA/1kW 2kVA/2kW 3kVA/3kW
Input Nominal Input Voltage 208/220/230/240VAC
Input Voltage Range 110~300V (Half Load) / 176~276V (Full Load)
Nominal Frequency 50/60Hz
Input Power Factor >0.99 @100% Load
THDi ≤4% (Linear Load) / ≤5% (Non-linear Load PF=0.8)
Output Output Voltage 220Vac (208/220/230/240VAC Selectable)
Output Voltage Regulation 1%
Output Frequency (Sync Mode) 50Hz:(44~56Hz) / 60Hz:(54~66Hz)
Output Frequency (Battery Mode) 50Hz ±0.05Hz / 60Hz ±0.05Hz
Output THDv% ≤3% (Linear Load), ≤5% (Non-linear Load)
Overload (1–3kVA) 30min@102%~110% Load
10min@110%~130% Load
30s@130%~150% Load
200ms@>150% Load
Output Waveform Pure Sinewave
Transfer Time Line Mode ←→ Battery Mode 0ms
Inverter ←→ Bypass 4ms 0ms
Efficiency AC→AC (Full Load) 94.50% 95.50% 95.50% 95%
ECO 98%
Battery Mode 87.5% / 88.5% / 89.5% / 91.5% / 91.5% / 94.5%
Battery & Charger Battery Voltage / Capacity Standard: 2×12V/9AH
Long-run: 36V External		 Standard: 4×12V/9AH
Long-run: 72V External		 Standard: 6×12V/9AH
Long-run: 96V External		 Standard: 16×12V/7AH/9AH
Long-run:192V/240V External*
Battery Type Maintenance Free Lead Acid (VRLA)
Recharge Time Standard:7 hours to 90% / Long-run: Depends on external battery
Max Recharge Current 1A Standard:4A
Long run:12A max
Floating Charge Voltage 27V / 40.5V / 54V / 81V /108V
Display & Alarm LED & LCD · Bat.Low · Overload · Fault
Physical Form Factor Tower / Rack
Tower (D*W*H) mm 276×145×225 392×145×225 395×190×325
Long-run:392×145×225		 460×190×615
Long-run:395×190×325
Rack (D*W*H) mm 385×438×88 385×438×88 505×438×88
Long-run:385×438×88		 385×438×88
Net Weight 8.6(S)/4.7(L) 14.3(S)/6.95(L) 20.5(S)/7.5(L) 50.6(S)/8.8(L) 50.8(S)/9.6(L)
Environment Humidity 20%~95% (No condensing)
Operating Temperature 0–40°C
*Specifications subject to change without notice. “S”=Standard model; “L”=Long-run model.
