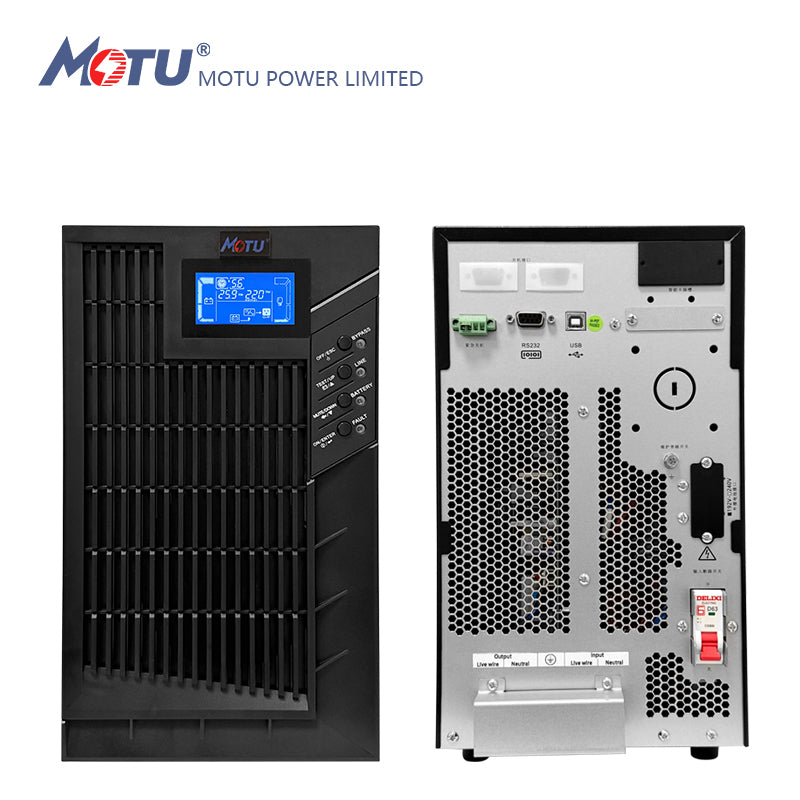

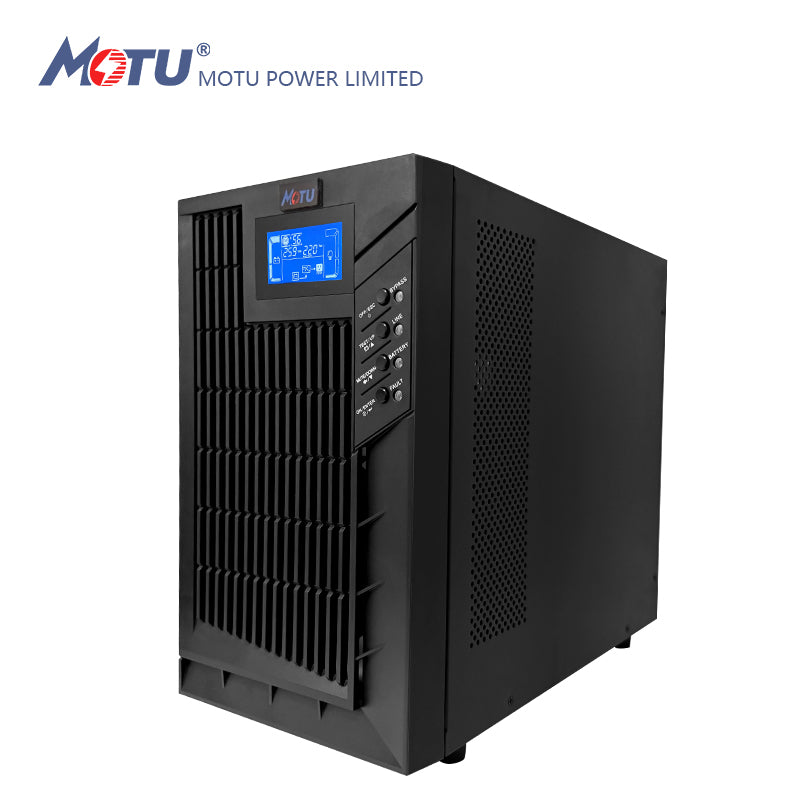

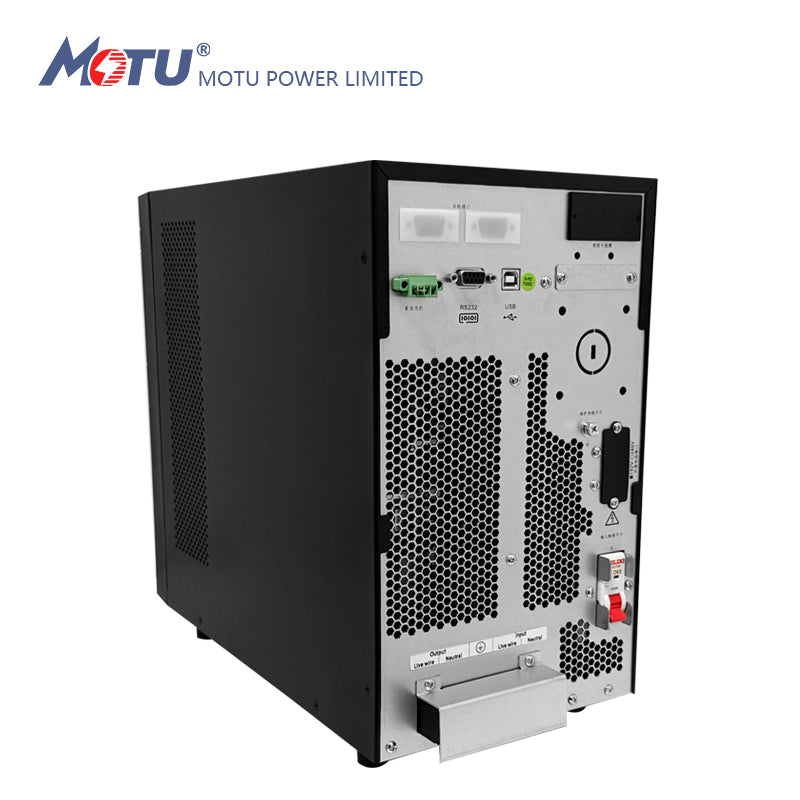

MOTU 10KVA/8000W OEM Single phase 220v 380v backup uninterruptible power supply 3 fase Onduleur online ups

MOTU 10KVA/8000W OEM Single phase 220v 380v backup uninterruptible power supply 3 fase Onduleur online ups

$0.00 USD
$0.00 USD
Sale $0.00 Sold out

Product Details:

Place of Origin: Shenzhen, China / Anhui
Brand Name: MOTU/HRD/OEM
Certification: CE,ISO9001
Model Number: 6000VA /4800W  10000VA /8000W

Power supply:

 Available in the US, EU, UK and Australia.





Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Supply Ability: 500pcs/day
Packaging Details: 1PCS/1CTN,STANDARD FOR EXPORT

Delivery Time:

 3-4 weeks after down payment
Price: Online quotes, email, or contact me via WhatsApp.





Click to contact me!
  • Free Shipping Worldwide
  • 90-Day Money Back Guarantee
  • 1 Year Worry-Free Warranty
View full details
Model C+ 6K (S) C+ 10K (S)
Phase Single-phase grounding
Capacity 6000VA / 4800W 10000VA / 8000W
Input Nominal Input Voltage 200/208/220/230/240VAC 200/208/220/230/240VAC
Input Voltage Range 110–300VAC @50% load ; 176–300VAC @100% load
Nominal Frequency 46~54Hz ; 56~64Hz
Input Power Factor >0.99 @100% load
Depreciation Coefficient 3:1
Output Output Voltage 200/208/220/230/240VAC 200/208/220/230/240VAC
Output Voltage Regulation ±1%
Output Frequency (Sync. Mode) 46~54Hz ; 56~64Hz
Output Frequency (Bat. Mode) 50Hz 60Hz ±0.1Hz
Output THDv% ≤3% (Linear Load), ≤5% (Non-linear Load)
Waveform (Battery Mode) 4ms (under standard conditions)
Efficiency mains mode 92% 93%
battery mode 90% 91%
Batteries Standard Machine
Battery Model 12V / 9AH
Quantity 16 20
Standard Charging Time Charge to 90% in 9 hours
Maximum Charging Current 1A / 2A
Charging Voltage 218.4VDC ±1% 273VDC ±1%

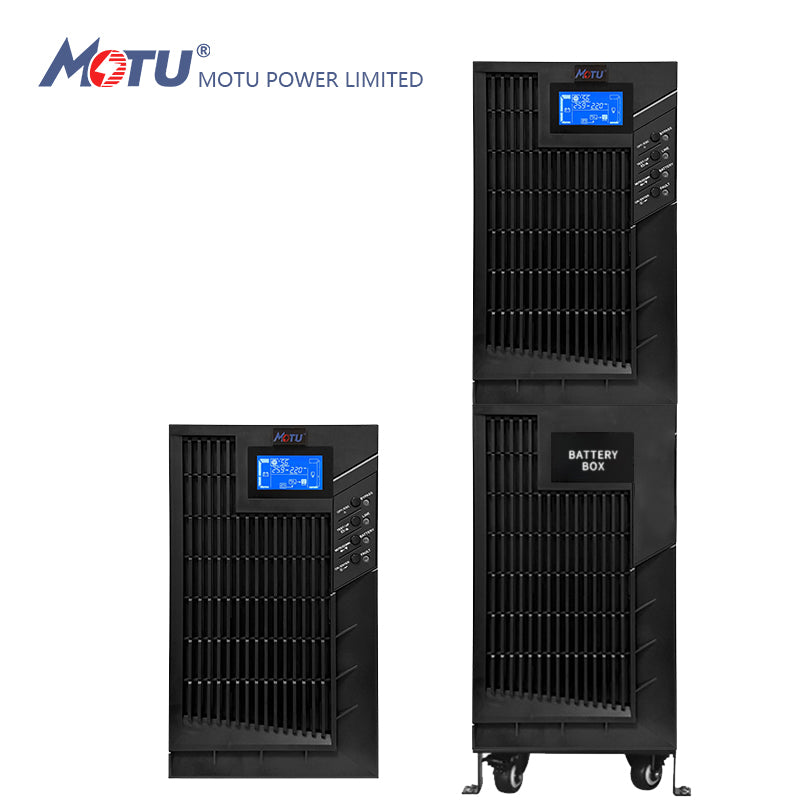

Long-lasting Machine
Battery Model Depends on the applicant
Quantity 16–20 (Adjustable)
Maximum Charging Current 1A/2A/4A/6A (6A only for 16 batteries)
Charging Voltage 273VDC ±1% (based on 20 batteries)

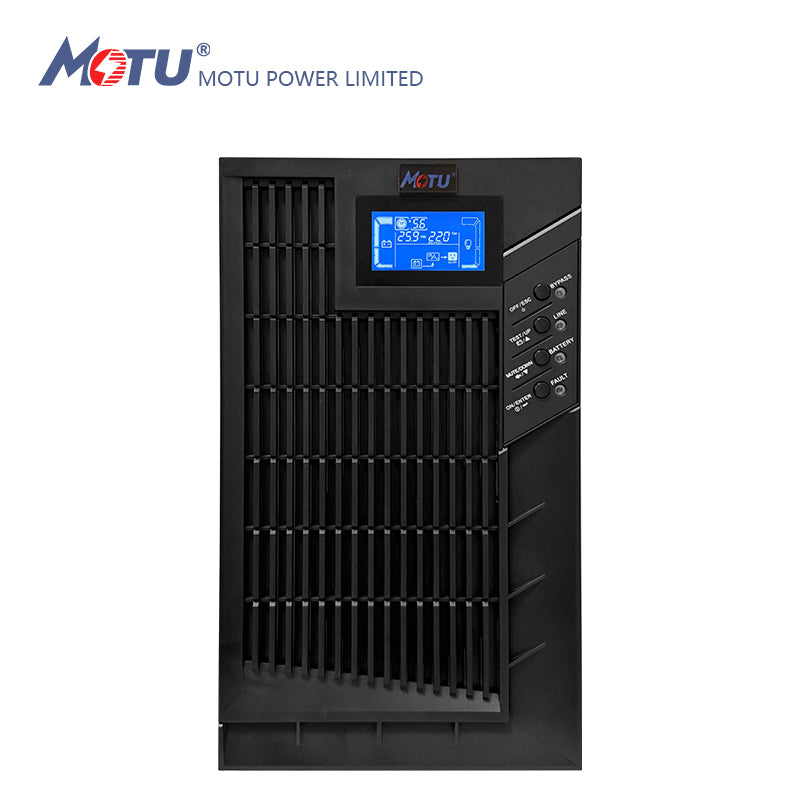

Display Description LCD display: Load Size, Battery Capacity, Utility Mode, Battery Mode, Bypass Mode, Fault Indication
Warning Sound Battery mode Rings every 4 seconds
Low battery Rings every 1 second
Overload Rings every 1 second
Mistake Continuous ringing
Physical Properties Standard Machine Tower Size (D*W*H) 369 × 190 × 688 mm
Standard Machine Weight (kg) 61 74
Long-lasting Machine Tower (D*W*H) 369 × 190 × 318 mm 442 × 190 × 318 mm
Long-lasting Machine Weight (kg) 12 16
Usage Environment Humidity Relative humidity 20–95%, 0–50℃ (non-condensing)
Noises Less than 55 dBA @1m Less than 58 dBA @1m

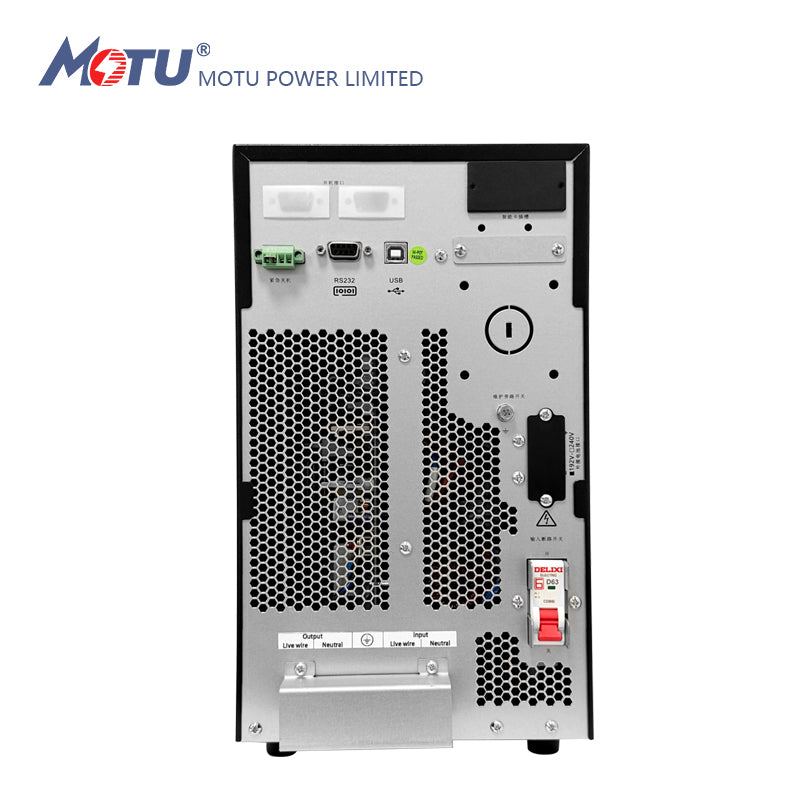

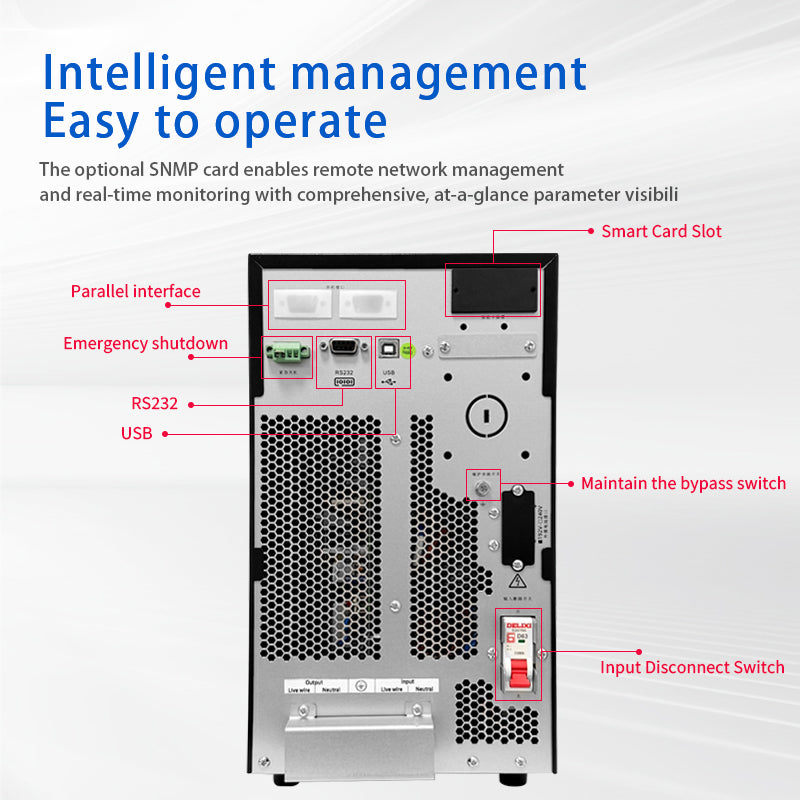

Control Management RS-232 / USB, Supports Windows / Linux / Mac; Optional SNMP

Motu Power Co., Ltd

Motu Group is a collection ofindependent research and development, professional design, manufacturing, pre-sales and after-sales service, computer data center computer room and related equipment sales in An integrated provider of excellent products and solutions. UPS uninterruptible power supplies,and batteries The group has a wide range of products, including data center micromodules, network cabinets, distribution cabinets, collector cabinets, precision air conditioning,dynamic environmental monitoring, as well as overall data center design and decoration,electrical engineering and other related equipment.

The company has obtained ISO9001/ISO14001/ISO45001/CE/TLC/CQC certifications. With a factory area of 26,000 square meters, it possesses state-of-the-art electronic measurement instruments, complete unit testing equipment, environmental testing facilities,as well as welding, debugging, and electrical assembly production lines required for power storage production and R&D.

The company possesses a highly skilled R&D team and a comprehensive, scientifically sound quality management system. Motu Technology is committed to sharing openly, acting responsibly, and creating excellence together with global customers and supply partners, dedicated to providing customized energy storage system solutions and premium services worldwide
